Insulated Cladding System OrangeBoard™ from Rmax
RMAX OrangeBoard™
The smart choice for Architects, Builders & Specifiers
RMAX OrangeBoard™ is the smart choice because of it's quality, flexibility and
economy. It is a superior expanded polystyrene (EPS) panel that has been
specifically designed to provided architects, builders and specifiers with a fully
compliant EIFS cladding system they can specify and use with confidence.
Fully compliant-Building Commissioning Australia
Leading independent consultants have comprehensively tested and evaluated
RMAX OrangeBoard™ and have verified that it complies with all relevant
Australian Standards and Building Code of Australia (BCA) Performance
Requirements necessary for EIFS systems. Consequently RMAX Orange
Board™ is fully compliant and approved as an external cladding and wall
insulation system.
Class: 'M' Rigid cellular polystyrene - Moulded - AS1366.3
Structural Stability: P2.1 of BCA Volume Two, AS 1366.3
Wind Load: 3.10.1 of BCA Vol.Two, AS 1170.2 (High wind regions A & B)
Weather Proofing: P2.2.2, BCA Volume Two, AS 4284
Easy to Install
RMAX OrangeBoard™ is easy to install. It's lightweight, rigid construction
enables it to be easily transported, unloaded and manoeuvred onto any building
site. This contributes to fast construction times and reduced construction
costs.
Design Flexibility-Residential, Commercial, Industrial
Versatility is a key characteristic of RMAX OrangeBoard™. It's unique properties
allow it to be easily cut without loss of strength. In additional it offers the dual
benefit of both thermal insulation and a superior rendering surface for a wide
range of residential, commercial and industrial buildings.
Environmentally Friendly
RMAX Isolite EPS products are noted for their environmental credentials and
RMAX OrangeBoard™ is no exception. It is non toxic, odourless and non-irritating
to the skin or eyes. It is biologically inert, contains no HCFCs, is safe for the
environment and can be recycled.
Reliable Sales & Service
As Australia's largest producer of Expanded Polystyrene products and with
over 50 years of experience it means you can trust RMAX for sales, service
and delivery. All our staff are experienced and are available to advise and
answer your all queries. Simply contact your local state office and ask to speak
to a RMAX OrangeBoard™ consultant today.
INSULATED CLADDING SYSTEM
RMAX recommends the use of it's premium-grade RMAX
Orange Board™ Insulated Cladding System to those
building professionals who seek the highest possible finish
with consistant results. It comprises a selection of high
quality, components that are fully intergrated and have
been specifically designed to compliment each other at
every stage of construction to produce outstanding results.

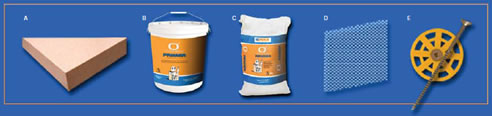

A - RMAX OrangeBoard™ - Insulated Cladding
B - RMAX OrangeBoard™ - Primer
C - RMAX OrangeBoard™ - Renderd
D - RMAX OrangeBoard™ - Wall Mesh
E - RMAX OrangeBoard™ - Fixing Accessories
For further information contact:
Rmax Rigid Cellular Plastics
phone: 03 9318 4422
fax: 03 9317 7888
web: www.rmax.com.au
|
